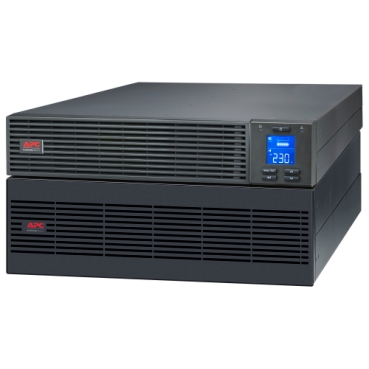

APC Easy UPS On-Line SRV RM Extended Runtime 6000VA 230V with External Battery Pack
Mã hàng: SRV6KRIL
Kích thước (mm) (DxWxH): 600 x 870 x 490
Trọng lượng: 88 kg
Xuất xứ: China
Bảo hành: 3 năm
|
SRV6KRIL
|
|
|
|
Main
|
|
Thời gian chạy cho tải
|
6000W
6phút 49giây
Tối thiểu-tối đa: 600-6000W
|
|
Công suất tối đa đã sử dụng
|
100 %
|
|
Main Input Voltage
|
230 V
|
|
Other Input Voltage
|
220 V
240 V
|
|
Main Output Voltage
|
230 V
|
|
Other Output Voltage
|
220 V
240 V
|
|
Rated power in W
|
6000 W
|
|
Rated power in VA
|
6000 VA
|
|
output connector type
|
Hard wire 3-wire (1P + N + E) 1
|
|
Number of rack unit
|
5U
|
|
provided equipment
|
1 USB cable
1 RS-232 configuration cable
2 rack mounting brackets
1 external battery pack
1 battery cable
user manual
|
|
|
|
|
|
|
|
Physical
|
|
colour
|
Black (RAL 7010)
|
|
Height
|
21.95 cm
|
|
width
|
43.8 cm
|
|
Depth
|
61.5 cm
|
|
Net weight
|
78 kg
|
|
mounting location
|
Front
|
|
mounting preference
|
Lower
|
|
mounting mode
|
Rack-mounted with kit
|
|
USB compatible
|
Yes
|
|
mounting position
|
Horizontal
|
|
|
Input
|
|
input voltage limits
|
110...300 V half load
176...300 V full load
|
|
number of input connectors
|
1 hard wire 3-wire (1P + N + E)
|
|
network frequency
|
40...70 Hz auto sensing
|
|
|
Output
|
|
Maximum configurable power in VA
|
6000 VA
|
|
Maximum configurable power in W
|
6000 W
|
|
output frequency
|
50/60 Hz +/- 3 Hz sync to mains
|
|
Harmonic distortion
|
1 %
|
|
UPS type
|
Double conversion online
|
|
Wave type
|
Sine wave
|
|
efficiency
|
94 % (full load)
|
|
Additional information
|
Configurable for 220: 230 or 240 nominal output voltage
|
|
bypass type
|
Internal bypass (automatic and manual)
|
|
crest factor
|
3: 1
|
|
|
Conformance
|
|
product certifications
|
CE
UKCA
EAC
TISI
|
|
standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
|
|
|
|
|
|
|
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
49 cm
|
|
Package 1 Width
|
87 cm
|
|
Package 1 Length
|
60 cm
|
|
Package 1 Weight
|
88 kg
|
|
