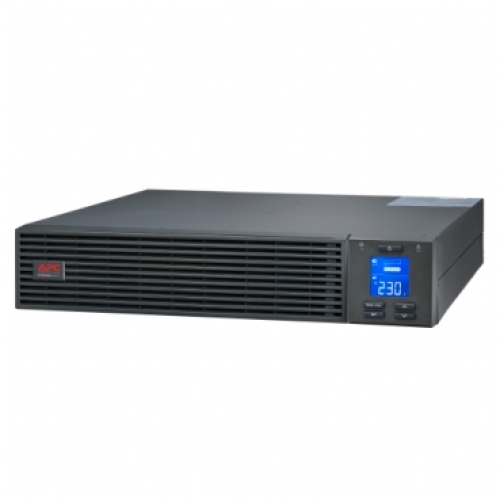

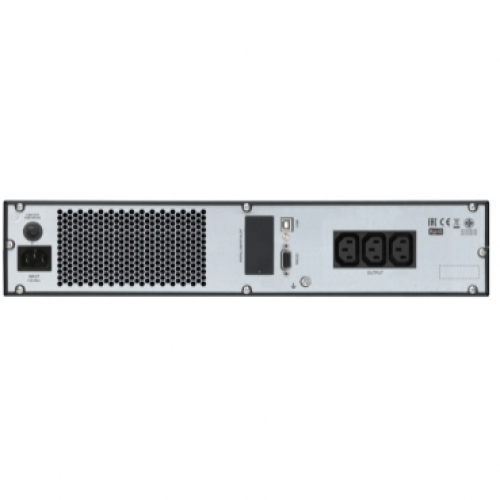

APC Easy UPS SRV RM 2000VA 230V
Mã hàng: SRV2KRI
Kích thước (mm) (DxWxH): 462 x 437 x 86 (2U)
Trọng lượng: 18.2 kg
Xuất xứ: China
Bảo hành: 3 năm
|
SRV2RI
|
|
|
|
Main
|
|
Thời gian chạy cho tải
|
1600W
4phút 2giây
Tối thiểu-tối đa: 160-1600W
|
|
Công suất tối đa đã sử dụng
|
100 %
|
|
Main Input Voltage
|
230 V
|
|
Other Input Voltage
|
220 V
240 V
|
|
Main Output Voltage
|
230 V
|
|
Other Output Voltage
|
220 V
240 V
|
|
Rated power in W
|
1600 W
|
|
Rated power in VA
|
2000 VA
|
|
Input Connection Type
|
IEC 60320 C14
|
|
output connection type
|
4 IEC 60320 C13
|
|
Number of rack unit
|
2U
|
|
Cable length
|
1.50 m
|
|
number of cables
|
1
|
|
provided equipment
|
1 IEC 60320 C13 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
1 rack mounting brackets
1 user manual
|
|
|
|
|
Physical
|
|
colour
|
Black (RAL 7010)
|
|
Height
|
8.6 cm
|
|
width
|
43.7 cm
|
|
Depth
|
46.2 cm
|
|
Net weight
|
18.2 kg
|
|
mounting location
|
Front
|
|
mounting preference
|
Lower
|
|
mounting mode
|
Rack-mounted with kit
|
|
USB compatible
|
Yes
|
|
mounting position
|
Horizontal
|
|
|
Input
|
|
input voltage limits
|
110...285 V half load
160...280 V full load
|
|
network frequency
|
40...70 Hz auto sensing
|
|
|
Output
|
|
Maximum configurable power in VA
|
2000 VA
|
|
Maximum configurable power in W
|
1600 W
|
|
output frequency
|
50/60 Hz +/- 3 Hz sync to mains
|
|
Harmonic distortion
|
3 %
|
|
UPS type
|
Double conversion online
|
|
Wave type
|
Sine wave
|
|
efficiency
|
88 % (full load)
|
|
Additional information
|
Configurable for 220 : 230 or 240 nominal output voltage
|
|
bypass type
|
Internal bypass (automatic and manual)
|
|
crest factor
|
3 : 1
|
|
|
Conformance
|
|
product certifications
|
CE
EAC
TISI
|
|
standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
|
|
|
|
|
|
|
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
21.8 cm
|
|
Package 1 Width
|
70 cm
|
|
Package 1 Length
|
55 cm
|
|
Package 1 Weight
|
20.7 kg
|
|
