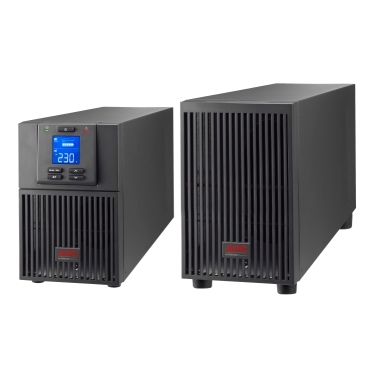

APC Easy UPS On-Line SRV Ext. Runtime 1000VA 230V with External Battery Pack
Mã hàng: SRV1KIL
Xuất xứ: China
Bảo hành: 3 năm
|
THÔNG SỐ KỸ THUẬT SẢN PHẨM
|
|
|
|
Main
|
|
Thời gian chạy cho tải
|
800W
23phút 43giây
Tối thiểu-tối đa: 80-800 Oát
|
|
Công suất tối đa đã sử dụng
|
100 %
|
|
Main Input Voltage
|
230 V
|
|
Other Input Voltage
|
220 V
240 V
|
|
Main Output Voltage
|
230 V
|
|
Other Output Voltage
|
220 V
240 V
|
|
Rated power in W
|
800 W
|
|
Rated power in VA
|
1000 VA
|
|
Input Connection Type
|
IEC 60320 C14
|
|
output connection type
|
3 IEC 60320 C13
|
|
Cable length
|
1.50 m
|
|
number of cables
|
1
|
|
provided equipment
|
1 IEC 60320 C13 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
1 battery cable
user manual
|
|
|
|
|
Physical
|
|
colour
|
Black (RAL 7010)
|
|
Height
|
23.8 cm
|
|
width
|
29 cm
|
|
Depth
|
40 cm
|
|
Net weight
|
24 kg
|
|
|
Input
|
|
input voltage limits
|
110...285 V half load
160...280 V full load
|
|
network frequency
|
40...70 Hz auto sensing
|
|
|
Output
|
|
Maximum configurable power in VA
|
1000 VA
|
|
Maximum configurable power in W
|
800 W
|
|
output frequency
|
50/60 Hz +/- 3 Hz sync to mains
|
|
Harmonic distortion
|
3 %
|
|
UPS type
|
Double conversion online
|
|
Wave type
|
Sine wave
|
|
efficiency
|
88 % (full load)
|
|
Additional information
|
Configurable for 220: 230 or 240 nominal output voltage
|
|
bypass type
|
Internal bypass (automatic and manual)
|
|
crest factor
|
3: 1
|
|
|
Conformance
|
|
product certifications
|
CE
UKCA
EAC
TISI
|
|
standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
|
Environmental
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
relative humidity
|
0…95 % non-condensing
|
|
Operating altitude
|
0...3000 m
|
|
Ambient air temperature for storage
|
-20…50 °C
|
|
storage Relative Humidity
|
Non-condensing 0…95 %
|
|
Storage altitude
|
0…15000 m
|
|
Acoustic level
|
50 dBA
|
|
Heat dissipation
|
372 Btu/h
|
|
IP degree of protection
|
IP20
|
|
|
Batteries & Runtime
|
|
Thời gian chạy
|
View Runtime Graph
action_new_window
|
|
Hiệu suất
|
View Efficiency Graph
action_new_window
|
|
Battery Type
|
Lead-acid battery
|
|
Battery Voltage
|
36 V
|
|
Number Of Battery Filled Slots
|
0
|
|
Number Of Battery Free Slots
|
0
|
|
Battery Recharge Time
|
4.5 h
|
|
Battery Life
|
3…5 year(s)
|
|
Battery Charger Power
|
175 W rated
|
|
Battery Option
|
SRV36BP-9A 1 1032 VAh
SRV36BP-9A 2 1548 VAh
SRV36BP-9A 3 2064 VAh
SRV36BP-9A 4 2580 VAh
|
|
|
|
|
Surge Protection and Filtering
|
|
Surge energy rate
|
600 J
|
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
2
|
|
Package 1 Height
|
35.5 cm
|
|
Package 1 Width
|
47 cm
|
|
Package 1 Length
|
|
