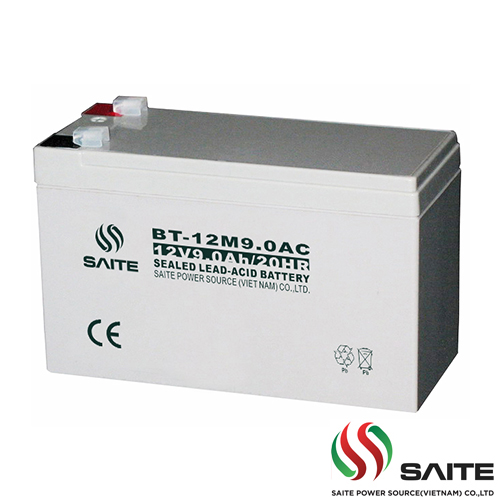

BÌNH ẮC QUY SAITE 12V-9AH ; BT-12M9.0AC
Liên hệ: 0908915071
BÌNH ẮC QUY SAITE 12V-9AH; BT-12M9.0AC
Mã hàng : BT-12M9.0AC
Dung lượng: 12V-9AH
Dài: 151 (mm) - Rộng: 65 (mm) - Cao: 93 (mm) - Tổng cao: 100(mm)
Trọng lượng: 2,55 kg
Thời gian bảo hành 1 năm
Physical Specifications
Nominal Voltage |
Nominal Capacity (20HR) |
|
Dimension |
|
Weight ±3% |
Internal Resistance (In full charge status) |
Standard Terminals |
|
L |
W |
H |
TH |
|||||
12V |
9.0AH |
151±2mm |
65±2mm |
93±2mm |
100±2mm |
Approx2.55kg (5.62lbs) |
≈ 14.0mΩ |
F01/F02 (standard) |
Battery Discharge Table
End Voltage |
|
Minute (M) |
Hour (H) |
|
|
|
||||||
10 |
15 |
30 |
45 |
1 |
1.5 |
2 |
3 |
5 |
8 |
10 |
20 |
|
|
|
Constant Current Discharge Data Sheet (@25ºC) Unit: A |
|
|
|
|||||||
9.6V |
28.9 |
22.2 |
13.1 |
9.4 |
7.01 |
5.03 |
3.59 |
2.73 |
1.81 |
1.21 |
0.875 |
0.468 |
9.9V |
27.6 |
21.2 |
12.5 |
9.1 |
6.84 |
4.90 |
3.51 |
2.67 |
1.77 |
1.19 |
0.866 |
0.464 |
10.2V |
26.2 |
20.2 |
11.9 |
8.8 |
6.67 |
4.78 |
3.42 |
2.60 |
1.72 |
1.17 |
0.858 |
0.459 |
10.5V |
25.0 |
19.2 |
11.3 |
8.5 |
6.51 |
4.67 |
3.34 |
2.54 |
1.68 |
1.14 |
0.849 |
0.455 |
10.8V |
23.8 |
18.3 |
10.8 |
8.2 |
6.35 |
4.55 |
3.26 |
2.48 |
1.64 |
1.12 |
0.841 |
0.450 |
|
|
Constant Power Discharge Data Sheet (@25ºC) Unit: W |
|
|
|
|||||||
9.6V |
355 |
278 |
160 |
110 |
