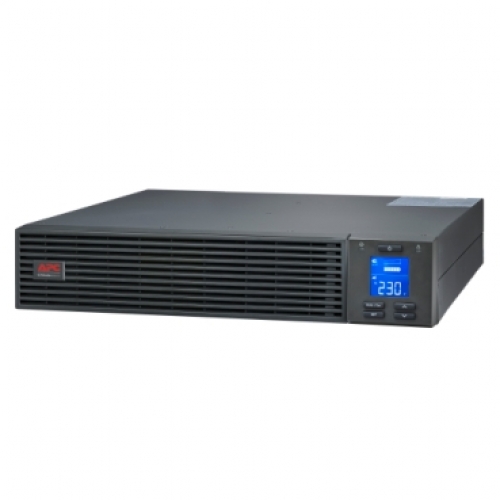

UPS APC SRV3KRI

Main

Thời gian chạy cho tải

2400W

4phút 24giây

Tối thiểu-tối đa: 240-2400 Oát

Công suất tối đa đã sử dụng

100 %

Main Input Voltage

230 V

Other Input Voltage

220 V
240 V

Main Output Voltage

230 V

Other Output Voltage

220 V
240 V

Rated power in W

2400 W

Rated power in VA

3000 VA

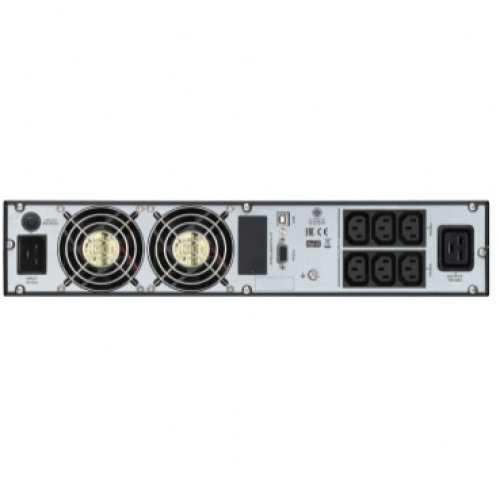

Input Connection Type

IEC 60320 C20

output connection type

6 IEC 60320 C13
1 IEC 60320 C19

Number of rack unit

2U

Cable length

1.48 m

number of cables

1

provided equipment

1 IEC 60320 C19 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
1 rack mounting brackets
1 user manual

Physical

colour

Black (RAL 7010)

Height

8.6 cm

width

43.7 cm

Depth

63.2 cm

Net weight

27.6 kg

mounting location

Front

mounting preference

Lower

mounting mode

Rack-mounted with kit

USB compatible

Yes

mounting position

Horizontal

Input

input voltage limits

110...285 V half load
160...280 V full load

network frequency

40...70 Hz auto sensing

Output

Maximum configurable power in VA

3000 VA

Maximum configurable power in W

2400 W

output frequency

50/60 Hz +/- 3 Hz sync to mains

Harmonic distortion

3 %

UPS type

Double conversion online

Wave type

Sine wave

efficiency

88 % (full load)

bypass type

Internal bypass (automatic and manual)

crest factor

3 : 1

Conformance

product certifications

CE
UKCA
EAC
TISI

standards

EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

22.8 cm

Package 1 Width

79.4 cm

Package 1 Length

57 cm

Package 1 Weight

29 kg
